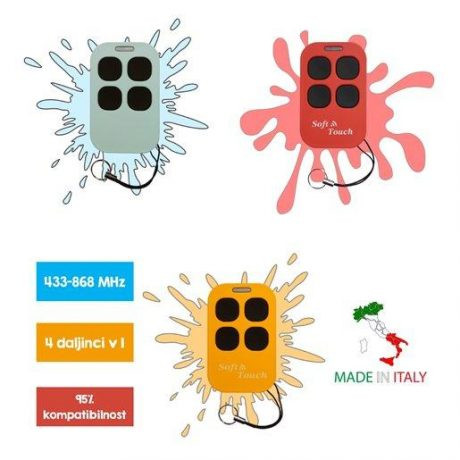

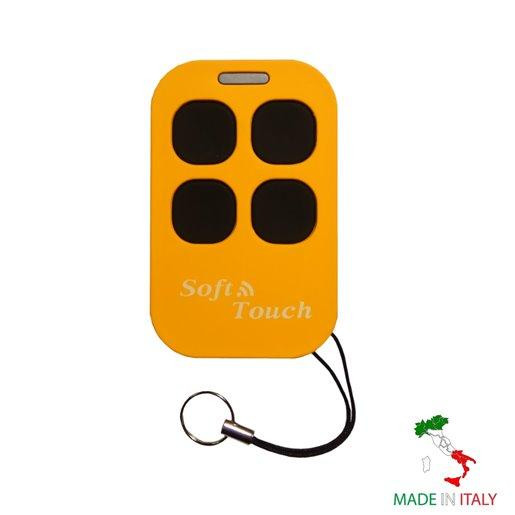

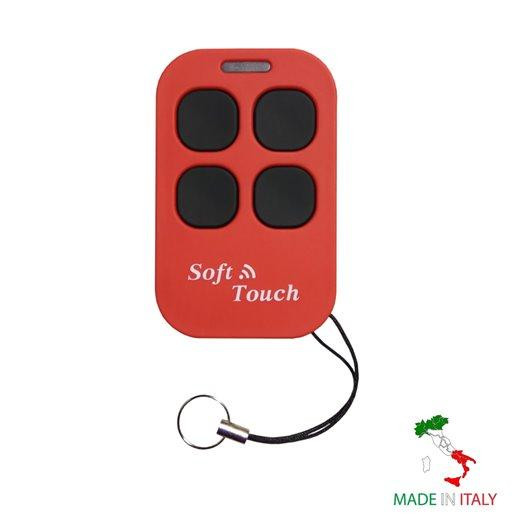

Univerzalni daljinski upravljalnik 4v1 433 in 868 MHz fiksna koda za garažna vrata, zapornice, itd.

Daljinski upravljalnik lahko podvoji do 95% daljinskih upravljalnikov na trgu, ki oddajajo frekvence med 433 in 868 MHz z fiksno ali rolling kodo (daljinec nato oddaja vedno enako kodo in ne generira naključne kode, zato ni primeren za vse sprejemnike). Zunaj Evrope je omogočen tudi razpon od 286 do 418 MHz. Vsak gumb je neodvisen, tako da je mogoče klonirati do 4 različne daljinske upravljalnike, tudi če oddajajo drugačne frekvence. Podvajanje:

1. Istočasno pritisnite gumba 1 in 2, dokler se LED indikator ne obarva zeleno.
2. Spustite vse gumbe.
3. Pritisnite in spustite gumb, kjer želite podvojiti izvirni daljinski upravljalnik.
4. Pritisnete in držite gumb na prvotnem daljinskem upravljalniku, ki ga želite kopirati in ga držite 10 cm od naprave.
5. Kopiranje je končano.

Ko je kopiranje končano, se v primeru stalne kode LED indikator vklopi dvakrat ali 4-krat v primeru »rolling« kode: v slednjem primeru daljinec morda ne bo deloval (preverite kompatibilnost). Nato se LED indikator obarva zelena in daljinec je pripravljen za kopiranje drugega daljinskega upravljalnika (točka 3). Po podvajanju je treba vsak gumb pritisniti vsaj dvakrat. V točki 3 je možno pritisniti gumb N-krat, da nastavite učno frekvenco za ta gumb. Programiranje naključne kode: sledite spodnjim navodilom, če želite nastaviti naključno kodo na en ali več gumbov, tudi v različnih frekvencah:

1. Istočasno pritisnite gumba 3 in 4, dokler se LED indikator ne obarva zeleno.
2. Spustite vse gumbe.
3. Večkrat pritisnite gumb, kamor želite nastaviti kodo, ki ustreza želeni frekvenci LED indikator se vklopi dvakrat , nato pa je mogoče nastaviti novo naključno kodo na drugem gumbu (točka 3).

POZOR: Za izdelavo kopije daljinca potrebujete delujoči daljinec, ki ga želite kopirati.

Frekvence:

433,92, 868,3, 315 *,

286 - 360 *, 384 - 400 *

403,55 *, 418 * MHz

Tehnični podatki:

Moč: -10dBm ERP max

Napajanje: CR2032 (3V 210mAh)

Tok: 9 - 25 mA 0 μA

Delovna temperatura: -10 ° C - + 55 ° C

Dimenzije: 60x31.5x13.5mm

Teža: 38g

Kompatibilni daljinci:

Znamka	Frekvenca	Modeli
ADYX	433.920	ALIZE EM2C, ALIZE EM4C
AETERNA	433.920	TX433 1,2,4 buttons
ALLMATIC	306.000	ASMX2, ASMX4
	433.920	AEMX1, AEMX2, AEMX4
		EUROPE AUTO ARMY1, ARMY2, ARMY4
		MX1, MX2, MX4
ALLISTER	318.000	9931-318, 9931T-318
ALLSTAR	288.000	111025 Allister Pulsar Quickcode
		9921T-288, 9921MT, 9921TK, 9922T-288, 9923T-288, 9931-288, 9931T-288, 9931MT, 9931TK, 9931TK6, 8831T-288, 8832T-288, 8833T-288,8821T-288, 8822T-288, 8823T-288, 8832TK
		8833OCS-288
	318.000	9921T-318, 9921MT, 9921TK, 9922T-318, 9923T-318, 9931-318, 9931T-318, 9931MT, 9931TK, 9931TK6, 8831T-318, 8832T-318, 8833T-318,8821T-318, 8822T-318, 8823T-318, 8832TK
		110995 Allister Pulsar Quickcode
		8830OCS-318
ALLTRONIK	433.920	S429_1, S429_2, S429_4, S429_M
		Be sure that your remote operates at 433.92MHz!
		S425
ALULUX	868.300	Alulux 868-2, Alulux 868-4
ANSONIC	433.920	SA 434-1E, SA434-2E, SA434-3E, SA434-4E
		SA 434-1MINI, SA434-2MINI, SA 434-2Midi
	868.350	SA 868-1E, SA 868-2E, SA868-3E, SA868-4E
		SA 868-1mini/M, SA 868-2mini/M (dip switch version)
APERTO	433.920	CPS1, CPS2, CPS4
APRIMATIC	305.000	TS1, TS2
APRITECH	433.920	Apritech Terra Copy
AUTELCO	286-306	TX300T
AVIDSEN	433.920	100601 micromark MM23164
		104505
		100951, 100955, 100550, 100400
B&D	433.920	062170/4333EBD, 062171, 4333A
BnD		62162
BD		PTX4 059120 / 059116
BANDY	433.920
BELFOX	433.920	DHS433-1, DHS433-2, DHS433-4, dip switch version
		DHS 433,92 (7733), dip switch version
	868.350	DHS 868,3, dipswitch version
		HS 868-20
BENINCA'	306.000	LOT1A, LOT2A, LOT4A
		LOTX1A, LOTX2A, LOTX4A
		LO.TX2PS
	433.920	LOT1W, LOT2W, LOT4W
		LOT2WMS
		T2WK, T4WK
		LOTX1W, LOTX2W, LOTX4W
		TO.GO2WP, TO.GO4WP, TO.GO2WK, TO.GO4WK
BERNER	868.300	Berner BHS140
		Berner BHS130
BESIDE	433.920	BEZAP
		HIT
BETA ELETTRONICA	315.000	BETALARM 6500
	330.000	BETALARM 5500
BFT	306.000	RCS
	315.000	VTM1, VTM2, VTM4
	418.000	GT01, GT02, GT04
	433.920	TE01, TE02 ( TEO1, TEO2 )
		TE04 ( TEO4 )
		BFT MITTO 2, BFT MITTO 4: Only if the receiver is CLONIX 1 or CLONIX 2 with DIP2 in ON position
BOSS Openers	303.000	BOSS HT4 6211-L 1,2 and 4 buttons, Boss BHT4, Boss HT3 blue led, Guardian 2211-L, Centurion 2211L, LYNX 2211L, MODERN 2211L 1 and 2 BUTTONs, STEEL-LINE 2211L 1, 2 and 4 BUTTON, STEEL-LINE HT3 BLUE LED, Garage Door Openers BRD1, BRD2, BRD3, BRD4, BRD9, RD1, RD2, RD3, RD4, RD9, BOL4, BOL5, BOL6, BOL9, OL4, OL5, OL6
STEEL-LINE Automation
Centurion
Guardian
BRAVO	433.920	Bravo Aladin 433
		Bravo Door Passepartout
	433.920	Bravo Aladin Passepartout
	868.300
BREDA	433.920	Breda TOP432SA
CAME	315.000	Came T312M, T314M
		Came Top314M, Top312M
		Came TOP312, TOP314
		Came TOP312NA, TOP314NA
	433.920	Came T432, T434, TOP432A, TOP434A, TOP432, TOP432NA, TOP434NA, TAM432, TAM434, TAM438
		Came TOP432M, TOP434M
		Came TAM432SA
		Came TOP432SA, Came TOP434SA
		Came TOP432NA, TOP434NA
		Came TWIN2, TWIN4
		CAME TOP-432EE, CAME TOP434EE
		CAME TOP-432EV, TOP-434EV
	868.350	CAME TOP862NA, Came TOP864NA
		CAME TOP-862EV, Came TOP864EV
CARDIN	300.000	S300
	310.000	S301, S302
	433.920	S476 TX2, S476TX4
CARPER	300.000	C300, C310, C318, C318T
	310.000
	318.000
CASIT	306.000	ERTS92B, ERTS92T
	433.920	ERTS92B, ERTS92T
		ERTS20DB, ERTS20DQ
		ERTS476D, ERTS476Q
		TXS1, TXS2, TXS3, TXS4, TXS6
		ERTS97B, ERTS97T
CEDAMATIC	305.000	Cedamatic CTX1S, CTX2S, CTX4S
	433.920	Cedamatic AEMX1, AEMX2, AEMX4
CELINSA	433.920	S10 1, S10 2, SAW1, SAW2
CENTURION	433.920	CLASSIC, SMART, SMART2
CHACON	433.920	Chacon KCT-510 Ref. 54591, compatible with DOMIA protocol for domotic appliances.
		Not comptible with LKCT-XXX!
CHAMBERLAIN	300.000	Chamberlain 300MC (multicode)
LIFTMASTER	315.000	333LM
MOTORLIFT		360LM, 362LM, 363LM
SEARS CRAFTSMAN	390.000	50CB, 53CB, 750CB, 753CB, 50LM, 53LM, 61LM, 62LM, 63LM, 139.53100, 139.53110, 139.53200, 139.53210
		54CB, 756CB, 54LM, 64LM, 859CB
		850CB, 853CB, 959CB, 81LM, 82LM, 83LM, 84LM, 99LM
		33LM
	418.000	4180, 4182, 4183
		4185
		787 remote keyless entry
	433.920	4330E, 4332E, 4333E
		4335E
COSTEL	300.000	Minitix
CPS	433.920	TCP3, CPS, Jolly 4
		CPS1 TCP3, CPS2 TCP3, CPS4 TCP3
		EM1CV, EM2CV, EM4CV
DASPI	433.920	Daspi Happy2 433, Daspi Pops2
		Daspi Zero2, Zero2CLO, Zero4CLO
DEA	306.000	Dea 306 1, 306 2, 306 4
		Dea 306
	433.920	Dea 433 1, 433 2, 433 4, Gold S1, Gold S2
		Dea Gold 238 S1, Dea Gold 238 S2, Dea Gold 239 S4
		Dea Genie 263
		Dea Punto S2
		Dea MIO TD2, MIO TD4
		Dea Mio TRD2, Dea Mio TRD4
DELMA	300.000	Apollo 300, ELSAMEC Apollo 300
		Mizard 300 1, Mizard 300 2, King
	433.920	Mizard 433 1, Mizard 433 2
		King 433 2
		Style Copy 2CH (this is a code duplicator)
DICKERT	433.920	Dickert MAHS433 01, MAHS433 04
		Note: we can NOT guarantee that it can be duplicated, because it depends by the receiver.
		Dickert S10-433A1L00, S10-433A4L00, S20-433A1L00, S20-433A4L00, S20-433A1000, S20-433A4000
		Note: only RED buttons model can be duplicated!
		Dickert S5-433-A2L00, S5U-433-A2L00
		Note: only RED buttons model can be duplicated!
	868.350	Dickert HS868-21
		Note: only RED buttons model can be duplicated!
		Dickert S5-868A2L00, S5U-868A2L00
		Note: only RED buttons model can be duplicated!
		Dickert S10-868A1L01 Yellow button
		Dickert S10-868A100, S10-868A400, S20-868A1L00, S20-868A4L00, S20-868A1000, S20-868A4000
		Note: only RED buttons model can be duplicated!
		Dickert S5-868A2L01, S10-868A1L01, S10-868-A4L06, green buttons
DIGICODE	300.000	DC5010, DC5012, DC5030, DC5032, DC5040, DC5042, DC5060, DC5062, DC5070, DC5072
	310.000
DITEC	433.920	GOL4C
		GOL4
		Note: These transmitters are rolling code and cannot be duplicated, but if you have a GOL4C device, you can duplicate it on Four or Multi, and it works with all the DITEC receivers.
		BIX LS2, BIX LP2, BIX LG4
		Note: These transmitters are rolling code and cannot be duplicated, but if you have a GOL4C device, you can duplicate it on Four or Multi, and it works with all the DITEC receivers.
DOITRAND	433.920	MPSTF2E JAUNE, MPSTF4E, HYPERPHONE MPSTF2E_GRISE
FDOITRAND		TS2DE, TS4DE
DOORHAN	433.920
DOORMATIC	433.920	SAW
DUCATI	433.920	TSAW1, TSAW2, TSAW3, TSAW4, 124
ALLDUCKS		ELBER TSAW1, TSAW2, TSAW3, TSAW4
		RONDY TSAW1, RONDY TSAW2, RONDY TSAW3
		TPR10-A, TPR20-A
		RONDY TPR10_A, RONDY TPR20_A
		TE2
		HC6203, 6203: only blue with transparent buttons, and transparent with transparent buttons
DÜWI	433.920	Several models, handsender used for radio sockets
DUWI
REV Ritter
ECP	292.000	FIX 292 MHz F105611
		KEY 292 MHz F106038
ELBE	433.920	501, 502, 504
		502a, 504a
		502, 504
ELCA	300.000	Aster 1100, Aster 1101
	433.920	Elca IRIS, IRIS 9CH.
		Both colors red and blue
		Elca Iris4_433D, Elca Iris2_433D
		ASTER2
		Aster 1000, Aster1001. Model 433D only!
		Colors: black, blue, light grey
		GEMINI 9CH, Elca Gemini2_433D, Elca Gemini4_433D
		VIRGO
ELDAT	433.920	Eldat Basewave RT20-4103M-01, RT20-4104M-01, Eldat RT20-4K, RT35-4104M-01, Eldat RT35-4K, Eldat RT21-4101M-01, RT21-4102M-01, MFZ 400033, MFZ RT20-4104M-01
MFZ		Eldat Basewave RT28-4101M-01, RT27-4101M-01, RT26-4101M-02, RT21-4125M-01, RT21-4139M-01, RT21-4139M-02, RT31-4139M-01, RT31-4139M-02, RTC02-4104M-01
NASSAU	868.300	Eldat Basewave RT20-5004M-01, RT20-5003M-01, Eldat RT20-5K, Eldat RT35-5004M-01, RT35-5K, Eldat RT21-5001M-01, RT21-5002M-01, NASSAU RT20-4K
		Eldat Basewave RT28-5001M-01, RT27-5001M-01, RT26-5001M-02, RT21-5025M-01, RT21-5039M-01, RT21-5039M-02, RT31-5039M-01, RT31-5039M-02, RTC02-5004M-01
ELEK	300.000	KTM194B
		KTR4
ELV	868.350	FS20 S4, FS20 S8, FS20 S8-2, FS20 S16, FS20S16R, FS20 S20-2, FS20 S20-3
CONRAD
ELVOX	433.920	Elvox ET, Elvox ET2 ZT03
		Elvox ET03, ET04
	868.350	Elvox ET08
EMFA	287.000	ET1, ET2, ET3
	308.000	ES_1, ES_2
ERONE	433.920	SETDS39433E2, SETDS39433E4
ERREKA	289.000	Erreka E20, Erreka E22
	433.920	Erreka Luna, Erreka SMAT 1 RESON 1, RESON 2, RESON 3
EUROPE AUTOMATISMES	306.000	ASMY1, ASMY2, ASMY4
	433.920	ARMY1, ARMY2, ARMY4
		S1, S2, S3
FAAC	300.000	TM300S, TM300S05 H
		Faac TM1 300, TM2 300, TM3 300
	315.000	T1, T2, T3
		Faac TM1 315, TM2 315, TM3 315
	330.000	TM1, TM2, TM3
		Faac TM1 330, TM2 330, TM3 330
	418.000	TM1 418 DS, TM2 418 DS, TM3 418 DS
		TM 418SL, TM1 418SL, TM2 418 SL, TM3 418SL
	433.920	TM1 433 DS, TM2 433 DS, TM3 433 DS
		TM1 433DS DPH, TM2 433DS DPH, TM3 433DS DPH
		TML2 433 SLR, TML4 433 SLR, TML2-433-SLR, TML4-433-SLR, TML2 433 ESL, TML4 433 ESL
		TML2 433 SLP, TML4 433 SLP, TML2-433-SLP, TML4-433-SLP
	868.350	TM1 868 DS, TM2 868 DS, TM3 868 DS
		TM1 868DS DPH, TM2 868DS DPH, TM3 868DS DPH
FADINI	315.000	ASTRO75-1, ASTRO75-2, ASTRO75-4
BPT	433.920	433 2M, Astro43_2m
		Astro433-2, Astro433-4, Astro43-2, Astro43-4
FERPORT	433.920	Tac1, Tac2, Tac4, Tac1k, Tac2k, Tac4k, Tac2kr
FORSA	287.000	Forsa Trieme
FUNKMODUL	433.920	T433A2K1, T433A2K2
ELSECO		T433A2K4, T433A2K4n
CASALI	330.000
GENIUS	433.920	Genius 433 2, Genius 433 3, Genius JA400 TM433, Genius JA401 TM433
		Genius TM2433DPH, Genius TM3433DPH
GIBIDI	306.000	Gibidi TS2M
	433.920	Gibidi Open TMB 433, Gibidi OPEN TMQ 433, Gibidi OPEN OUT 2, Gibidi OPEN OUT 4
		Gibidi Open/2 TM/B, Gibidi Open/4 TM/B
GILGEN	433.920	Gilgen F7000/S4, Gilgen F7000/S2
GOBBATO	306.000	Gobbato T306
GRIFFON	403.55	Griffon 404 MHz dip switch remotes and duplicating remotes
	433.92	Griffon 433 MHz dip switch remotes and duplicating remotes
GTO	318.000	GTO Mighty Mule 1/2 buttons, RB741, RB742
		GTO Mighty Mule 3 buttons, RB743
GULLIVER	306.000	Gulliver MD/1, Gulliver MD/1, Gulliver MDRQ 306 LABEL
	433.920	MDW 2E
HAUSS	433.920	Pocket 3750-1, Pocket3750-2, Pocket 3750-4
HEDDOF	318.000	P219-1, P219-2
		P220-1, P220-2, P220-3
HORMANN	433.920	HSM2, HSM4, yellow buttons
HOERMANN		Please note that, in Netherlands, Hoermann sell this kind of remote control which transmit a rolling code: in this case it cannot be duplicated!
	868.300	HS1, HS2, HS4, blue buttons
		HSD2
		HSE2, HSE4, blue buttons
		HSM2, HSM4, blue buttons
		HSP4, blue buttons
		HSS2, HSS4, blue buttons
		HSZ1-868, HSZ2-868
HRC	433.920
JAY	433.920	UBEI x1 SL1
		UBET 11, UBET 21, UBET 31, UBET 41, UBET 61Â
JCM	290.000	EC1, EC2, EC3, ET1, ET2, ET3
KEY AUTOMATION	433.920	900TXB-42, 900TXB-42N, 900TXP-42, 900TXP-42N
		900TXB-44, 900TXG-44
		900SUB-44, 900SUB-44N, 900SUB-44W, 900SUB-44WN
		900TXK-42, 900TXW-42,900TXK-44, 900TXW-44
KING	433.920	Note: receiver should be setup withrolling code feature disabled
LABEL	306.000	Label MDR, Label IUPPITER 306, Gulliver MDRS2 306
IUPPITER	433.920	Label RJW/1E, RJW/2E, RJW/4E, RJW/12E
		MDW/1E, MDW/2E
LEB	306.000	Leb TSA4
	433.920	Leb TMW
		Leb TSAW2N, TSAW4N
		Leb TCP3  (this is a code duplicator)
		Leb TRK4 Note: receiver should be configured to disable rolling check.
		Leb TPW4
	868.300	Leb TPK4
LEGRAND	433.920	Legrand CAD 48900, 48901, 48903.
		Legrand CAD 48906, 48910, 48912
LINCE	302.000	LE TX1, LE TX2
	433.920	LR 2035
LINEAR	300.000	MULTI-CODE 308911, 308913, 1089
	310.000	MULTI-CODE 412001, 414001, 109410, 109710
		MULTICODE 306010, 307010, 108210
		MULTI-CODE 308301, 308302
		MULTI-CODE 105015
	310.000	Delta3 Moore-o-Matic: DT, DT2, DT2A, DT22A, DTC, DTD
		Delta 3 Moore-o-Matic: DT3, DT4
		Delta 3 Moore-o-Matic: Mini-T LB "LadyBug"
	312.000	Delta3 DTK (canada)
MA SYSTEM	433.920	MA TX1, MA TX2, MA TX3
MARANTEC	315.000	Marantec M3-2312, Marantec M3-3313
	418.000	Marantec D212, D222, D232
	433.920	D101
		D12
		D212, D222, D232
		Digital 302, D302
		Digital 304, D304
	868.300	Digital 302, D302
		Digital 304, D304
MCZ	433.920	Aster
MEIßNER	433.920	LW433-1, LW433-2, LW433-4
MEISSNER		Pocket 3750 1, 2, 4
MKTECHNO	306.000	MK-TECHNO TX1 and MKTECHNO TX2 with RED LED
MK-TECHNO
MONSEIGNEUR	433.920	ARC2, ARC4
		TDR 400 3845, TDR 400 3846, TDR 400 3847
		T1SAW433, T2SAW433, T4SAW433
MOTORLINE	433.920	MX1, MX2, MX3, MX4, MX6
STATEUROP		MX11, MX12, MX13
MOTOSTAR	433.920	CLIKSTAR2, CLICKSTAR4
		CLICK-4M, CLICKSTAR RE 532, CLICKSTAR RE 534
NICE	306.000	EASY S1, S2, S4
	433.920	FLO1, FLO2, FLO4
		VERY VE
NOLOGO	306.000
	433.920	ECO DIP
NOVOTECNICA	306.000	BIT N1, BIT N2
		BIT NT1, BIT NT2, BIT NT4
OG	433.920	OG62, OG64
O&O	306.000	OeO TX2, TX4 (green buttons)
OeO, OandO, OetO	433.920	OeO TX4-E, TX2-E (red buttons)
		OeO T-COM DS 4-2,  O&O T-COM DS 4-4
OPENOUT	306.000	TS2M
	433.920	TMQ 433 2, TMQ 433 4
PIAZZETTA	433.920	4 buttons for wood/pellet heater
PORTAMATIC	433.920	MPH01, MPH02
POWERFIX Profi	433.920	RCB-A 3600R
(Lidl)
PRASTEL	306.000	Prastel NCSMT1, NCSMT2P, NCSMT4P
		Prastel KMFT2P, KMFT4P, KMFT2P93, KMFT4P93
	433.920	Prastel MPSTF2E, MPSTF4E
		Prastel MPSTL2E, MPSTL4E
PROEM	433.920	ER2C4ACM, ER4C4ACM
PROGET	433.920	Proget ETY_433N2, Proget ETY-2N, Proget ETY 4N
		Proget EMY433-N2, Proget EMY 2N, Proget EMY 4N
PROTECO	433.920	Proteco TX433
		Proteco EUROMATIC
		Proteco HIT
PUJOL	288.000	Pujol JCM TRINARIO 1, TRINARIO 2, TRINARIO 3
		Pujol TT1, TT2, Pujol TRINARIO 1, TRINARIO 2
PULSAR	318.000	9931-318, 9931T-318
QUASAR	287.000	Tx SA4, Serie Argento, SA
	287.000	TXSA2T
	306.000	300 2, 300 4
	433.920	433 TANGO SLIM BLEU
QUICK	433.92	Quick Gangway transmitter. Marine remote control for yacht.
		Quick Télécommande pour Passerelle
		Mando a distancia marinas para pasarela
		Radiocomando QUICK per passerelle su yacht.
		Quick Pocket Model 02, Quick Pocket Model 04
RADIODIGIT	291.000	TBM, TCM
RFXCOM	433.920	RFXCOM TRX433 USB
		Select the Meiantech/Atlantic/Aidebao protocol
ROGER	433.920	Roger R80/TX12, R80/TX14, R80/TX12R, R80/TX14R
		Roger H80/TX22
		Roger G80/TX32, G80/TX34, G80/TX32R, G80/TX34R
SEA	433.920
		Sea SMART433_TX2_DIP, SMART433_TX3_DIP
		SMART433_TX2_COPY,SMART433_TX3_COPY
Podobni izdelki Univerzalni daljinski upravljalnik SIMPLY FR1 4v1 433-868 Mhz fiksna in rolling koda moder Ni zaloge - 33.95 € Spletna stran uporablja piškotke, ki jih uporabljamo za izboljšanje uporabniške izkušnje ter analitiko in vas ne identificirajo. Več v politiki zasebnosti Sprejemem piškotke Zavrni
